How to check app memory consumption in RWI

Pre-req: Device must have access to RWI. If not please submit a Zendesk ticket to enable development tools.

For X1/Flex/XumoTV

1. Launch app
2. Launch RWI
3. Go to the 'Timelines' Tab

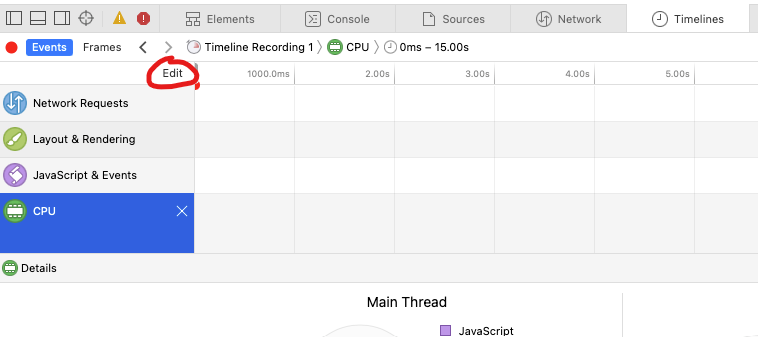

4. Click 'Edit" button

   1.

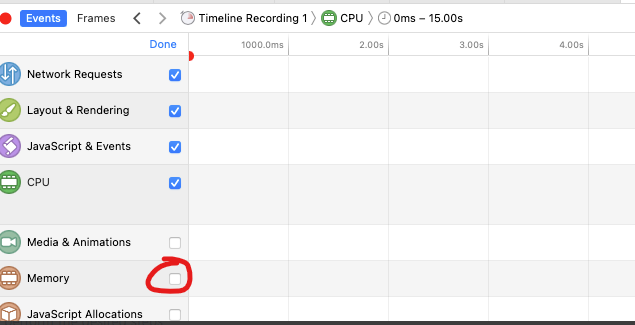

5. Check the 'Memory' check box

   1.

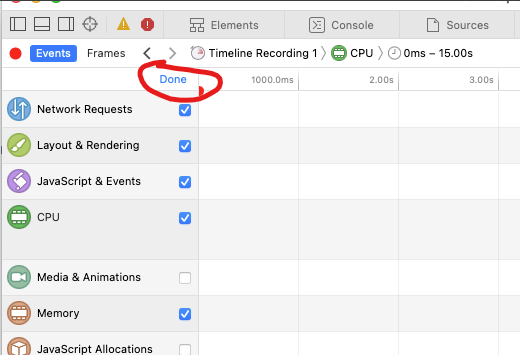

6. Click 'Done'

   1.

7. Click 'Record' button

   1.

8. Then perform the desired steps within the application like launching playback and letting it run a couple minutes.
9. Stop the recording once the test is complete.

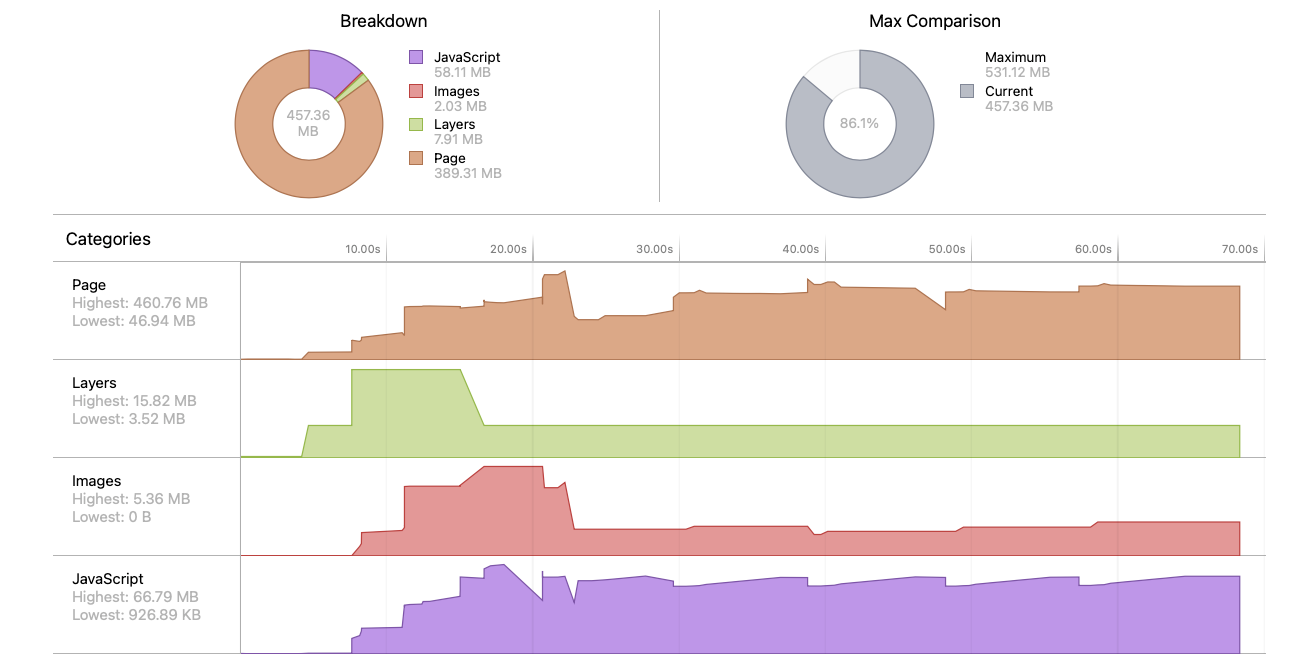

10. You should see the results like the below

    1.
